STARTWATER| Rise to Resilience!
Team Updates
Renato Domingues Coutinho
Renato Domingues Coutinho
Renato Domingues Coutinho
Renato Domingues Coutinho
Renato Domingues Coutinho
Our logo!
Renato Domingues Coutinho
Renato Domingues Coutinho This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| importnumpyasnp | |
| importmatplotlib.pyplotasplt | |
| importpandasaspd | |
| # Training the model | |
| dataset_train=pd.read_excel("DADOS CLIMÁTICOS APP-2.xlsx") | |
| training_set=dataset_train.iloc[:,1:2].values | |
| fromsklearn.preprocessingimportMinMaxScaler | |
| sc=MinMaxScaler(feature_range= (0,1)) | |
| training_set_scaled=sc.fit_transform(training_set) | |
| x_train= [] | |
| y_train= [] | |
| foriinrange(12, 669): | |
| x_train.append(training_set_scaled[i-12:i,0]) | |
| y_train.append(training_set_scaled[i,0]) | |
| x_train, y_train=np.array(x_train), np.array(y_train) | |
| x_train=np.reshape(x_train, (x_train.shape[0], x_train.shape[1], 1)) | |
| fromkeras.modelsimportSequential | |
| fromkeras.layersimportDense | |
| fromkeras.layersimportLSTM | |
| fromkeras.layersimportDropout | |
| fromkeras.callbacksimportModelCheckpoint | |
| data_path="C:\\Users\\renat\\OneDrive\\Área de Trabalho\\NASA" | |
| regressor=Sequential() | |
| regressor.add(LSTM(units=80, return_sequences=True, input_shape= (x_train.shape[1], 1))) | |
| regressor.add(Dropout(0.2)) | |
| regressor.add(LSTM(units=80, return_sequences=True)) | |
| regressor.add(Dropout(0.2)) | |
| regressor.add(LSTM(units=80, return_sequences=True)) | |
| regressor.add(Dropout(0.2)) | |
| regressor.add(LSTM(units=80, return_sequences=False)) | |
| regressor.add(Dropout(0.2)) | |
| regressor.add(Dense(units=1)) | |
| regressor.compile(optimizer="adam", loss="mean_squared_error") | |
| #print(regressor.summary()) | |
| checkpointer=ModelCheckpoint(filepath=data_path+"\\regressor-{epoch:02d}.hdf5", verbose=1) | |
| #regressor.fit(x_train, y_train, epochs = 20, batch_size = 32) | |
| regressor.fit(x_train, y_train, epochs=50, batch_size=32, callbacks=[checkpointer]) | |
| regressor.save(data_path+"final_regressor.hdf5") | |
| #regressor = regressor.load(data_path + "\\regressor-100.hdf5") | |
| #regressor = load_model(data_path + "\model-100.hdf5") | |
| regressor.load_weights(data_path+"\\regressor-28.hdf5") | |
| # Testing the model | |
| dataset_test=pd.read_excel("DADOS CLIMÁTICOS APP-2 test.xlsx") | |
| real_precipitation_value=dataset_test.iloc[:,1:2].values | |
| dataset_total=pd.concat((dataset_train["chuva (mm)"], dataset_test["chuva (mm)"]), axis=0) | |
| inputs=dataset_total[len(dataset_total) -len(dataset_test) -12:].values | |
| inputs=inputs.reshape(-1,1) | |
| inputs=sc.transform(inputs) | |
| x_test= [] | |
| foriinrange(12, 13): | |
| x_test.append(inputs[i-12:i,0]) | |
| x_test=np.array(x_test) | |
| x_test=np.reshape(x_test, (x_test.shape[0], x_test.shape[1], 1)) | |
| predicted_precipitation_value=regressor.predict(x_test) | |
| predicted_precipitation_value=sc.inverse_transform(predicted_precipitation_value) |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| <!doctype html> | |
| <!--[if lt IE 7]> <html class="no-js lt-ie9 lt-ie8 lt-ie7" lang=""> <![endif]--> | |
| <!--[if IE 7]> <html class="no-js lt-ie9 lt-ie8" lang=""> <![endif]--> | |
| <!--[if IE 8]> <html class="no-js lt-ie9" lang=""> <![endif]--> | |
| <!--[if gt IE 8]><!--> | |
| <htmlclass="no-js" lang="en"> | |
| <!--<![endif]--> | |
| <head> | |
| <metacharset="utf-8"> | |
| <metahttp-equiv="X-UA-Compatible" content="IE=edge"> | |
| <metaname="viewport" content="width=device-width, initial-scale=1"> | |
| <metaname="google-site-verification" content="" /> | |
| <title>StartWater</title> | |
| <metaname="description" content=""> | |
| <linkrel="icon" type=text/csshref="favicon.ico"> | |
| <linkrel="stylesheet" href="vendors/bootstrap/dist/css/bootstrap.min.css"> | |
| <linkrel="stylesheet" href="assets/css/style.css"> | |
| <linkrel="stylesheet" href="https://use.fontawesome.com/releases/v5.8.1/css/all.css" integrity="sha384-50oBUHEmvpQ+1lW4y57PTFmhCaXp0ML5d60M1M7uH2+nqUivzIebhndOJK28anvf" crossorigin="anonymous"> | |
| <linkhref='https://fonts.googleapis.com/css?family=Open+Sans:400,600,700,800' rel='stylesheet' type='text/css'> | |
| <linkrel="stylesheet" href="vendors/bootstrap/dist/css/bootstrap.min.css"> | |
| <linkrel="stylesheet" href="vendors/font-awesome/css/font-awesome.min.css"> | |
| <linkrel="stylesheet" href="vendors/themify-icons/css/themify-icons.css"> | |
| <linkrel="stylesheet" href="vendors/flag-icon-css/css/flag-icon.min.css"> | |
| <linkrel="stylesheet" href="vendors/selectFX/css/cs-skin-elastic.css"> | |
| <style> | |
| body { | |
| /* background-color: #04a5f0; */ | |
| background-image:url("galaxy.jpeg"); | |
| } | |
| </style> | |
| <script> | |
| functionchangeSelect(value){ | |
| varvalor=document.getElementById("valor"); | |
| if(value==0){ | |
| valor.value=0; | |
| }else{ | |
| valor.value=150; | |
| }; | |
| }; | |
| </script> | |
| </head> | |
| <body> | |
| <!-- <div style="font-size: 4vw; font-family: Georgia, 'Times New Roman', Times, serif; width: 100%; text-align: center; color: white; margin-top: 1vw;">Start Water App</div> --> | |
| <imgsrc="logo 2.png" alt="logo" height="400" width="400" style="margin: 0 0 0 40vw;"> | |
| <divstyle="width: 100%"> | |
| <divid="" style="display: block; width: 100%; height: auto; margin: 0 0 -2vw 0;"> | |
| <divclass="col-sm-5" style="margin: 0 0 0 2vw"> | |
| <divclass="card sombra" style="width: 94.5vw; height: 23vw;"> | |
| <divclass="card-header sombra" style="background-color: lightgray; color: black; border: none; text-align: center;"> | |
| <!-- <strong class="card-title">Cálculo de Economia de Água e Economia Financeira em Segundos</strong> --> | |

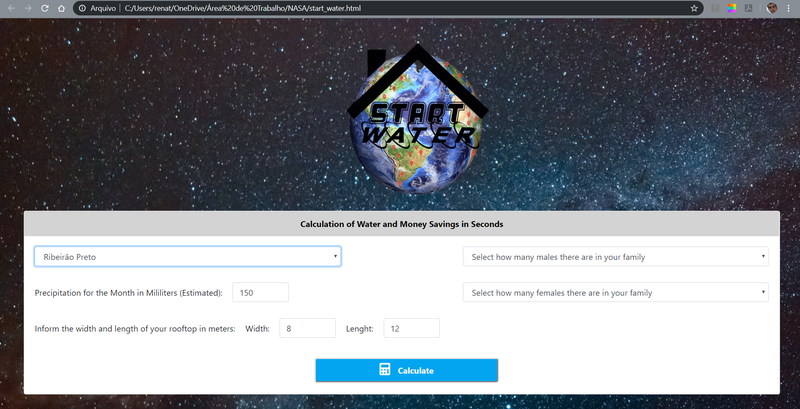

| <strongclass="card-title">Calculation of Water and Money Savings in Seconds</strong> | |
| </div> | |
| <divclass="card-body"> | |
| <selectid="" onchange="changeSelect(this.value)" type="text" class="form-control col-lg-5" style="margin: 0 auto 0 auto; float: left;"> | |
| <optionvalue="0" selecteddisabled>Select your City</option> | |
| <optionvalue="1">Ribeirão Preto</option> | |
| <optionvalue="2">Cravinhos</option> | |
| <optionvalue="3">São Paulo</option> | |
| <optionvalue="4">Franca</option> | |
| </select> | |
| <selectid="" type="text" class="form-control col-lg-5" style="margin: 0 auto 0 auto; float: right;"> | |
| <optionselecteddisabled>Select how many males there are in your family</option> | |
| <option>1</option> | |
| <option>2</option> | |
| <option>3 or more</option> | |
| </select> | |
| <divstyle="margin: 1vw auto 0 auto; width: 50vw; float: left;"> | |
| <!-- <div style="display: inline-block;">Nível de Precipitação para o Mês em Mililitros (Estimado):</div> --> | |
| <divstyle="display: inline-block;">Precipitation for the Month in Mililiters (Estimated):</div> | |
| <inputid="valor" type="number" class="form-control col-lg-3" style="margin: 1vw 0 0 1vw; width: 7vw; display: inline-block;" value="0"> | |
| </div> | |
| <selectid="" type="text" class="form-control col-lg-5" style="margin: 2vw auto 0 auto; float: right;"> | |
| <optionselecteddisabled>Select how many females there are in your family</option> | |
| <option>1</option> | |
| <option>2</option> | |
| <option>3 or more</option> | |
| </select> | |
| <divstyle="margin: 1vw auto 0 auto; width: 60vw; float: left"> | |
| <!-- <div style="display: inline-block;">Informe a largura e o comprimento do seu telhado em metros:</div> --> | |
| <divstyle="display: inline-block;">Inform the width and length of your rooftop in meters:</div> | |
| <divstyle="display: inline-block; margin-left: 1vw;">Width: </div> | |
| <inputtype="number" class="form-control col-lg-3" style="margin: 1vw 0 0 1vw; width: 7vw; display: inline-block;" value="8"> | |
| <divstyle="display: inline-block; margin-left: 1vw;">Lenght: </div> | |
| <inputtype="number" class="form-control col-lg-3" style="margin: 1vw 0 0 1vw; width: 7vw; display: inline-block;" value="12"> | |
| </div> | |
| <!-- Botão Calcular --> | |
| <buttontype="button" data-toggle="modal" data-target="#botaoCalculo" class="col-lg-3 sombra" style="margin: 2.5vw auto 1vw 35vw; padding: .6vw 0; | |
| text-align: center; border-radius: .3vw; background: #04a5f0; color: #ffffff; | |
| cursor:pointer; text-align: center; float: left;"> | |
| <iclass="fas fa-calculator" style="margin: 0 1vw 0 0; font-size: 1.5vw;"></i><b>Calculate</b> | |
| </button> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| <divclass="modal fade" id="botaoCalculo" tabindex="-1" role="dialog" aria-labelledby="largeModalLabel" aria-hidden="true"> | |
| <divclass="modal-dialog modal-sm" role="document"> | |
| <divclass="modal-content" style="width: 80vw; height: 40vw; margin: 0 0 0 -30vw; position: absolute;"> | |
| <divclass="modal-header"> | |

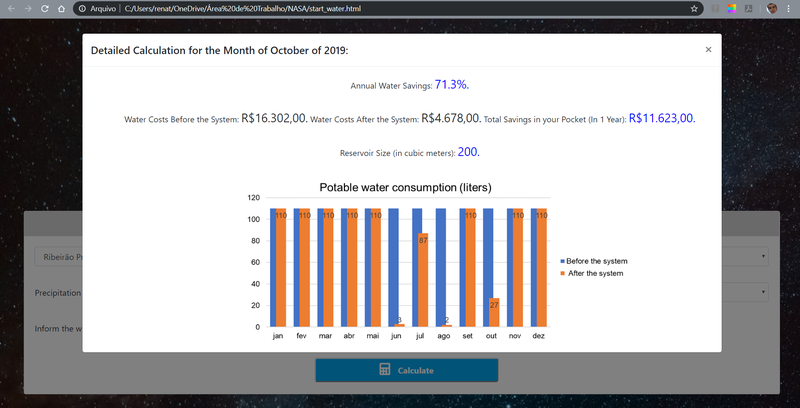

| <h5class="modal-title" id="largemodalLabel">Detailed Calculation for the Month of October of 2019:</h5> | |
| <buttontype="button" class="close" data-dismiss="modal" aria-label="Close"> | |
| <spanaria-hidden="true">×</span> | |
| </button> | |
| </div> | |
| <divclass="modal-body" style="text-align: left; list-style-type:none; padding: none; cursor: pointer"> | |
| <divid="" style="margin-left: 2vw; text-align: center;" data-dismiss="modal">Annual Water Savings: <spanstyle="font-size: 1.5vw; color: blue">71.3%.</span></div> | |
| <divid="" style="margin: 2vw 0 0 2vw; text-align: center" data-dismiss="modal" style="margin-top: 2vw;">Water Costs Before the System: <spanstyle="font-size: 1.5vw">R$16.302,00.</span> Water Costs After the System: <spanstyle="font-size: 1.5vw">R$4.678,00.</span> Total Savings in your Pocket (In 1 Year): <spanstyle="font-size: 1.5vw; color: blue">R$11.623,00.</span></div> | |
| <!-- <div id="" style="margin: 2vw 0 0 2vw; text-align: center" data-dismiss="modal" style="margin-top: 2vw;">Tempo para Recuperar o Investimento Financeiro: <span style="font-size: 1.5vw; color: blue">.</span></div> --> | |
| <divid="" style="margin: 2vw 0 0 2vw; text-align: center" data-dismiss="modal" style="margin-top: 2vw;">Reservoir Size (in cubic meters): <spanstyle="font-size: 1.5vw; color: blue">200.</span></div> | |
| <imgsrc="grafico 1.png" alt="Gráfico consumo de água potável" height="330" width="750" style="margin: 1.5vw 0 0 19vw;"> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| <scriptsrc="vendors/jquery/dist/jquery.min.js"></script> | |
| <scriptsrc="vendors/popper.js/dist/umd/popper.min.js"></script> | |
| <scriptsrc="vendors/bootstrap/dist/js/bootstrap.min.js"></script> | |
| <scriptsrc="assets/js/main.js"></script> | |
| </body> |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| # Variáveis e cálculos utilizados no aplicativo | |
| # Meses | |
| ano1= ['janeiro', 'fevereiro', 'março', 'abril', 'maio', 'junho', 'julho', 'agosto', 'setembro', 'outubro', | |
| 'novembro', 'dezembro'] | |
| ano2= ['janeiro', 'fevereiro', 'março', 'abril', 'maio', 'junho', 'julho', 'agosto', 'setembro', 'outubro', | |
| 'novembro', 'dezembro'] | |
| # Volume de chuva mensal (m3) | |
| # Chuva média mensal (mm) | |
| # Área (m2) | |
| # Demanda mensal (m3) | |
| # Volume da cisterna (m3) | |
| # Nível do reservatório (antes) | |
| # Nível do reservatório (depois) | |
| # Uso de água potável | |
| # Métodos para dimensionamento | |
| # Método prático Azevedo Neto | |
| V=0.042*'P'*'A'*'T' | |
| # Método Rippl | |
| # Para um exemplo hipotético usando P = 1477, A = 900, T = 3, no método Azevedo Neto V = 170 m3. | |
| # No método Rippl V = 409 m3. |
Renato Domingues Coutinho
Start Water Calculations
