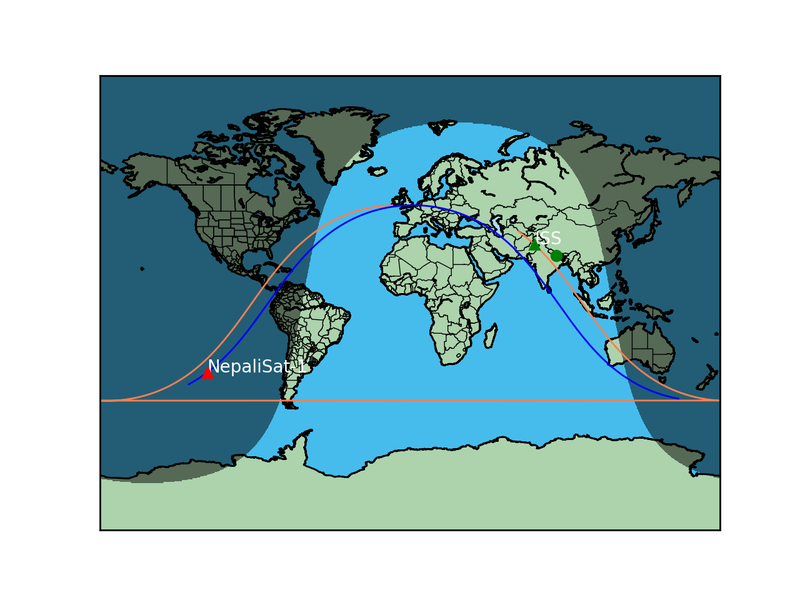

This is the simulation for tracking satelite using the API from NASA. It converts TLE (Two line element) data from satellite to latitude and longitude project of orbits into the earth.
Please run plotter-main.py and install required dependencies
Team Updates
B
Bikram Pandit This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| [ | |
| { | |
| "@id": "https://data.ivanstanojevic.me/api/tle/25544", | |
| "@type": "TleModel", | |
| "satelliteId": 25544, | |
| "name": "ISS (ZARYA)", | |
| "date": "2019-10-19T17:06:18+00:00", | |
| "line1": "1 25544U 98067A 19292.71270833 .00000078 00000-0 93604-5 0 9996", | |
| "line2": "2 25544 51.6434 103.7961 0007043 164.9912 17.5733 15.50203574194572", | |
| "line_color": "coral", | |
| "marker_color": "green", | |
| "title": "ISS" | |
| }, | |
| { | |
| "@id": "https://data.ivanstanojevic.me/api/tle/44329", | |
| "@type": "TleModel", | |
| "satelliteId": 44329, | |
| "name": "RAAVANA-1", | |
| "date": "2019-10-18T11:49:54+00:00", | |
| "line1": "1 44329U 98067QE 19291.49299144 .00008243 00000-0 13481-3 0 9993", | |
| "line2": "2 44329 51.6395 108.0382 0007374 173.2880 186.8211 15.53444264 19189", | |
| "line_color": "blue", | |
| "marker_color": "red", | |
| "title": "NepaliSat-1" | |
| } | |
| ] |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| importrequests | |
| importtime | |
| defget_page(page_no=1): | |
| print('Processing page %d'%page_no) | |
| response=requests.get("https://data.ivanstanojevic.me/api/tle?page=%d"%page_no).json() | |
| returnresponse['member'] | |
| defget_last_page(): | |
| response=requests.get("https://data.ivanstanojevic.me/api/tle").json() | |
| last_link=response['view']['last'] | |
| returnint(last_link.split('=')[1].strip()) | |
| out=open('out.csv','a') | |
| dict= [] | |
| forpage_numberinrange(6,100): | |
| data=get_page(page_no=page_number) | |
| formemberindata: | |
| id=member['@id'] | |
| type=member['@type'] | |
| satelliteId=member['satelliteId'] | |
| name=member['name'] | |
| date=member['date'] | |
| line1=member['line1'] | |
| line2=member['line2'] | |
| wr='%s,%s,%d,%s,%s,%s,%s\n'% (id,type,satelliteId,name,date,line1,line2) | |
| out.write(wr) | |
| time.sleep(5) | |
| out.close() | |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| importrequests | |
| importephem | |
| fromthreadingimportThread | |
| members= [] | |
| defget_page(page_no=1): | |
| print('Processing page %d'%page_no) | |
| response=requests.get("https://data.ivanstanojevic.me/api/tle?page=%d"%page_no).json() | |
| returnresponse['member'] | |
| defget_last_page(): | |
| response=requests.get("https://data.ivanstanojevic.me/api/tle").json() | |
| last_link=response['view']['last'] | |
| returnint(last_link.split('=')[1].strip()) | |
| defasyncLoadData(*page_numbers): | |
| forpage_numberinpage_numbers: | |
| data=get_page(page_number) | |
| data_for_page[page_number-1] =data | |
| last_page_number=get_last_page() | |
| data_for_page= [None] *last_page_number | |
| page_numbers=list(range(1, last_page_number+1)) | |
| no_of_threads=20 | |
| pages_per_thread=len(page_numbers) //no_of_threads | |
| page_number_chunks= [page_numbers[page_number:page_number+pages_per_thread] forpage_numberin | |
| range(0, len(page_numbers), pages_per_thread)] | |
| threads= [] | |
| forpage_number_chunkinpage_number_chunks: | |
| thread=Thread(target=asyncLoadData,args=page_number_chunk) | |
| thread.start() | |
| threads.append(thread) | |
| forthreadinthreads: | |
| thread.join() | |
| members= [] | |
| forpage_numberinrange(1,last_page_number+1): | |
| data=data_for_page[page_number-1] | |
| ifdataisNone: | |
| continue | |
| formemberindata: | |
| members.append(member) | |
| print(members) | |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| importephem | |
| importdatetime | |
| importmath | |
| importjson | |
| importmatplotlib.pyplotasplt | |
| frommpl_toolkits.basemapimportBasemap | |
| m=Basemap( | |
| projection='mill', | |
| resolution='h', | |
| area_thresh=10000.,) | |
| my_loc= [85,27] | |
| deffind_dist(lat1,lon1,lat2,lon2): | |
| frommathimportsin, cos, sqrt, atan2, radians | |
| R=6373.0 | |
| dlon=lon2-lon1 | |
| dlat=lat2-lat1 | |
| a=sin(dlat/2) **2+cos(lat1) *cos(lat2) *sin(dlon/2) **2 | |
| c=2*atan2(sqrt(a), sqrt(1-a)) | |
| distance=R*c | |
| returndistance | |
| defplot_sat(sat): | |
| name=sat['name'] | |
| line1=sat['line1'] | |
| line2=sat['line2'] | |
| tle_rec=ephem.readtle(name, line1, line2) | |
| print(name, line1,line2) | |
| now=datetime.datetime.utcnow() | |
| lats= [] | |
| lons= [] | |
| dates= [] | |
| foriinrange(0, 100): | |
| date=now+datetime.timedelta(seconds=i*10) | |
| tle_rec.compute(date) | |
| lat, lon=tle_rec.sublong*180.0/math.pi, tle_rec.sublat*180.0/math.pi | |
| lats.append(lat) | |
| lons.append(lon) | |
| dates.append(date) | |
| foriinrange(50, len(dates)): | |
| plt.cla() | |
| m.drawcoastlines() | |
| m.drawcountries() | |
| m.drawstates() | |
| m.drawmapboundary(fill_color='#46bcec') | |
| m.fillcontinents(color='#acd3ac', lake_color='#acdbfd') | |
| m.nightshade(dates[i]) | |
| x, y=m(lons,lats) | |
| m.plot(x, y, marker='', color='red', linewidth=1) | |
| print(x,y) | |
| x, y=m(lons[i], lats[i]) | |
| print(lons[i], lats[i]) | |
| m.plot(x, y, marker='o', color='blue', zorder=5, linewidth=5) | |
| print(x,y) | |
| # plt.title( "test") | |
| plt.pause(0.5) | |
| defplot_sats(sats): | |
| dates= [] | |
| now=datetime.datetime.utcnow() | |
| seconds=500 | |
| foriinrange(0, seconds): | |
| date=now+datetime.timedelta(seconds=i*10) | |
| dates.append(date) | |
| sat_latlngs= [] | |
| foriinrange(len(sats)): | |
| name=sats[i]['name'] | |
| line1=sats[i]['line1'] | |
| line2=sats[i]['line2'] | |
| tle_rec=ephem.readtle(name, line1, line2) | |
| print(name, line1,line2) | |
| lats= [] | |
| lons= [] | |
| forjinrange(len(dates)): | |
| tle_rec.compute(dates[j]) | |
| lat, lon=tle_rec.sublong*180.0/math.pi, tle_rec.sublat*180.0/math.pi | |
| lats.append(lat) | |
| lons.append(lon) | |
| sat_latlngs.append([lats,lons]) | |
| foriinrange(0, len(dates)): | |
| plt.cla() | |
| m.drawcoastlines() | |
| m.drawcountries() | |
| m.drawstates() | |
| m.drawmapboundary(fill_color='#46bcec') | |
| m.fillcontinents(color='#acd3ac', lake_color='#acdbfd') | |
| m.nightshade(dates[i]) | |
| x, y=m(my_loc[0],my_loc[1]) | |
| m.plot(x,y,marker='o',color='green', linewidth=5) | |
| forjinrange(len(sats)): | |
| latlngs=sat_latlngs[j] | |
| lats=latlngs[0] | |
| lons=latlngs[1] | |
| x, y=m(lats,lons) | |
| m.plot( x,y, marker='', color=sats[j]['line_color'], linewidth=1) | |
| x, y=m(lats[i], lons[i]) | |
| m.plot(x, y,marker='^', color=sats[j]['marker_color'], zorder=5) | |
| print(x,y) | |
| plt.text(x,y,sats[j]['title'], color='white') | |
| # plt.title("Distance between you and NepalSat-1 is %d" % (find_dist(my_loc[1],my_loc[0],lats[i],lons[i]))) | |
| print(lons[i],lats[i]) | |
| plt.pause(0.5) | |
| c=open('data.json', 'r') | |
| sats=json.load(c) | |
| plot_sats(sats) | |
| # for sat in sats: | |
| # plot_sat(sat) |
