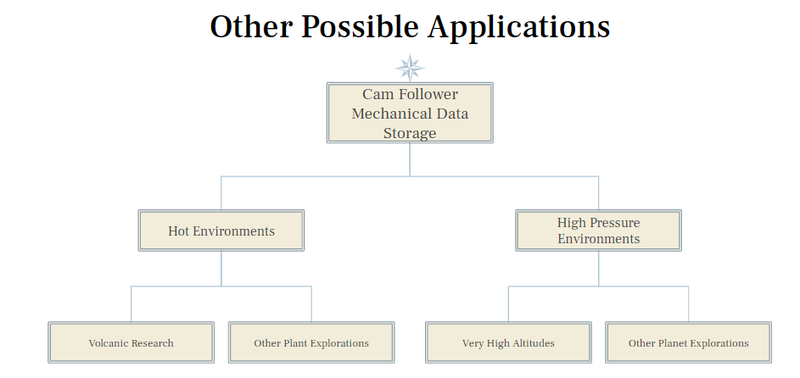

Future applications
Future applications
toduyale94Temi

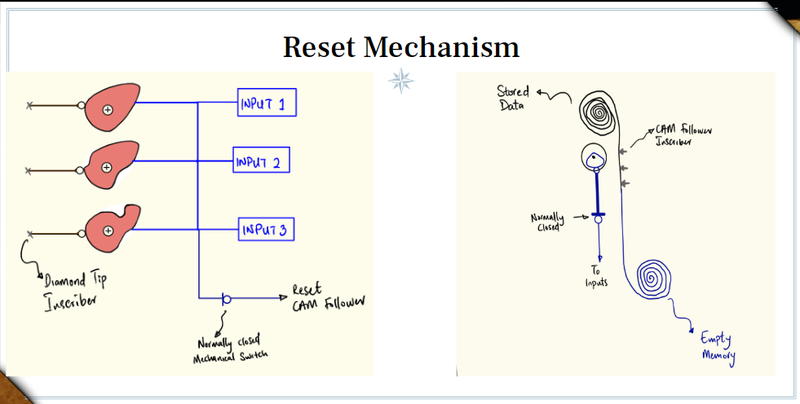

We designed another CAM Follower system attached to a Normally Closed switch which opens the connections to the voltage sources at the end each cycle
We designed another CAM Follower system attached to a Normally Closed switch which opens the connections to the voltage sources at the end each cycle
toduyale94Temi

We ran into a problem where the voltage sources are constant and needed to be reset at the end of every cycle

toduyale94Temi

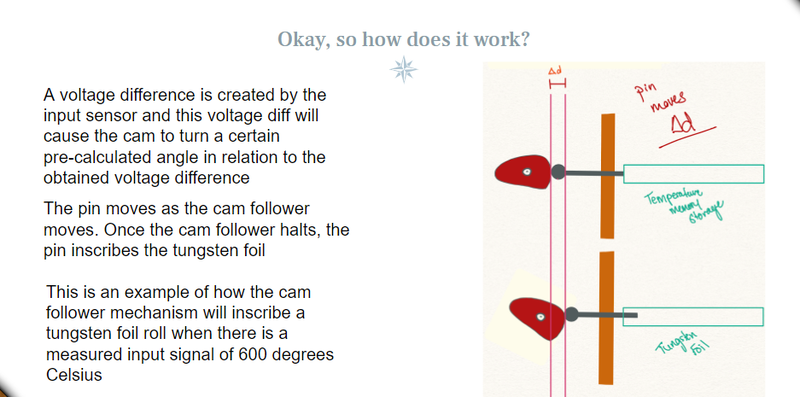

This mechanism was fully designed by us with the implementation of CAM Follower systems used in Fire Control Computers from World War 2

toduyale94Temi
Team Stream Item
