Venus RAM-e-mber| The Memory-Maker

Team Updates

Here we have some additional clips of the rover's gearbox.

pheneNefeli Gkremou

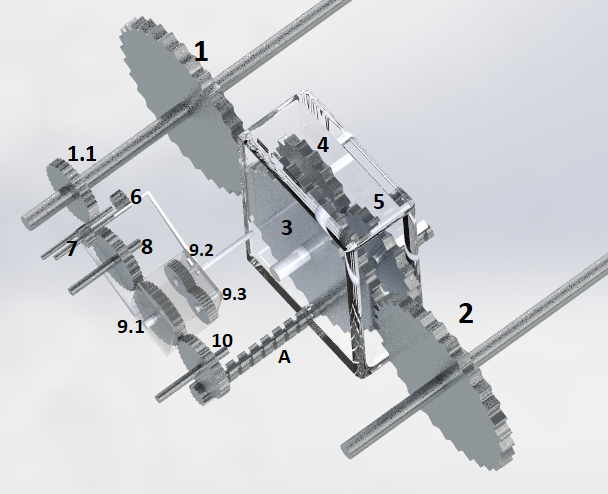

The whole Gear Box. Its working concept is explained in the document in our drive.
The whole Gear Box. Its working concept is explained in the document in our drive.
charatsisKonstantinos Charatsis

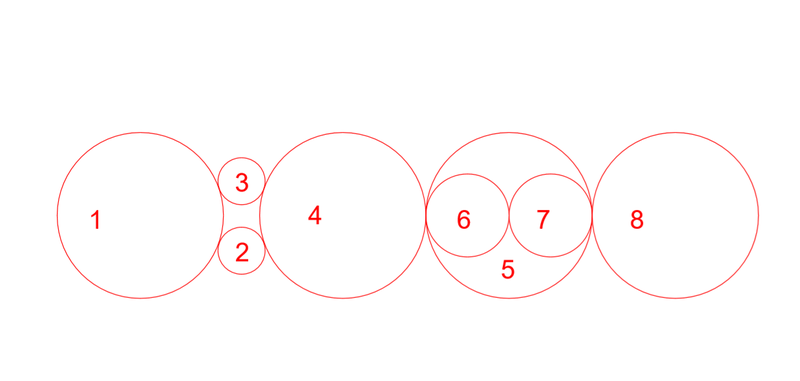

Gearbox top view
Gearbox top view
megistos10Ioakeim Chrysopoulos

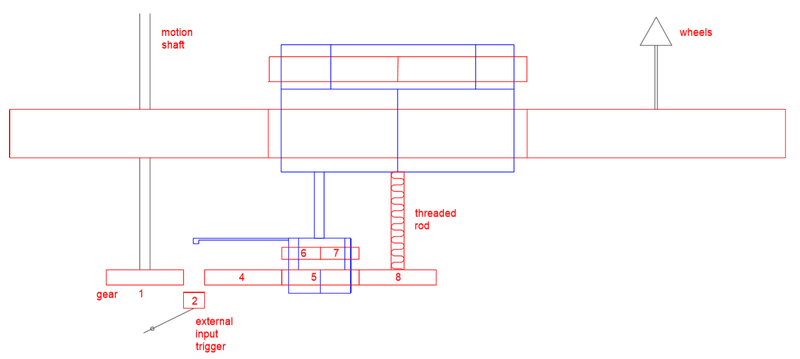

View of our gearbox
View of our gearbox
megistos10Ioakeim Chrysopoulos

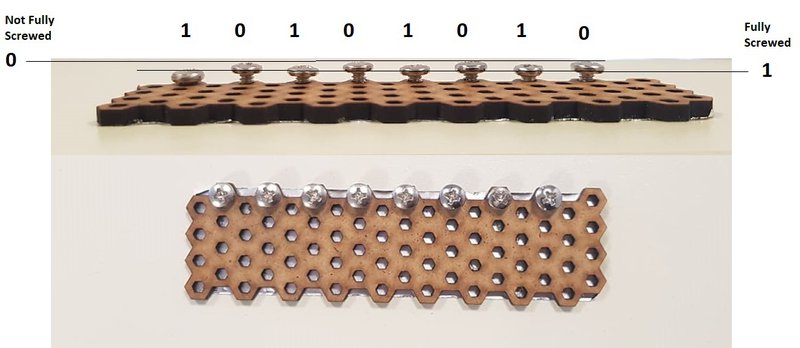

The two states in our prototype by laser-cut. Fully screwed gives "1", not fully screwed gives "0".
The two states in our prototype by laser-cut. Fully screwed gives "1", not fully screwed gives "0".
charatsisKonstantinos Charatsis

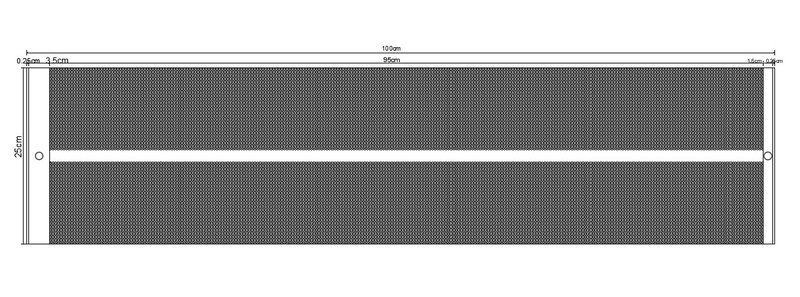

Image of the layers of the memory where bytes of the memory are written. Layers are estimated to be 125 in order the total size to be over 1MB.
Image of the layers of the memory where bytes of the memory are written. Layers are estimated to be 125 in order the total size to be over 1MB.
charatsisKonstantinos Charatsis

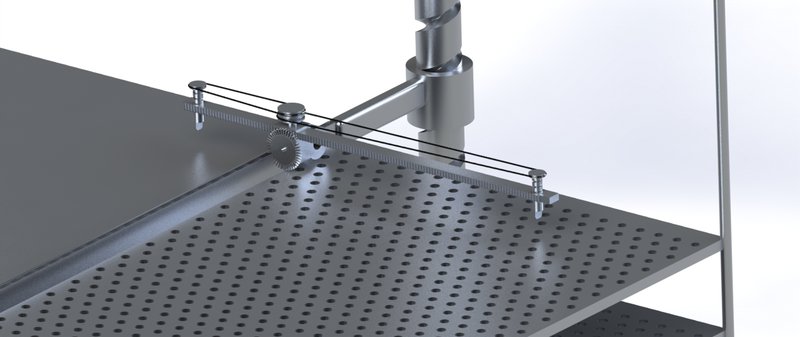

A detail of the electromachine read/write head.
A detail of the electromachine read/write head.
charatsisKonstantinos Charatsis

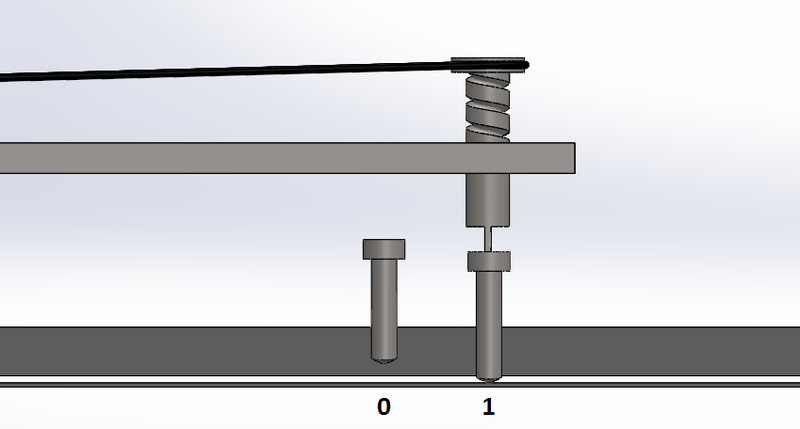

How the two states of "0" and "1" are represented of our system design.
How the two states of "0" and "1" are represented of our system design.
charatsisKonstantinos Charatsis
Team Stream Item
katerina_bitoΑΙΚΑΤΕΡΙΝΗ ΒΥΤΟΓΙΑΝΝΗ
Team Stream Item
charatsisKonstantinos Charatsis
