HybridWCN - Space Apps Challenge

HybridWCN| Internet on the Ocean

Team Updates

	#ifndef WEATHER_STATION
	#define WEATHER_STATION

	#include <Arduino.h>
	#define ENABLE_DEBUG// Enabling debug prints

	#define VBATPIN A7 // Voltage Battery Voltage Pin
	#define WDIR_CALIBRATION 0.973 // (990/1017) 990 = max value table, 1017 max ADC acquired

	// Weather Station pins to Adafruit Feather M0
	#define RAIN 11
	#define WSPEED 12
	#define WDIR A0

	// LoRa module pins to Adafruit Feather M0
	#define RFM95_CS 8
	#define RFM95_RST 4
	#define RFM95_INT 3

	// Define Baudrate
	#define BAUDRATE 9600

	// Include Weather Station Objects
	#include "SensorRTC.h"
	#include "WeatherRecord.h"
	#include "WeatherComunication.h"
	#include "SensorTemperature.h"
	#include "SensorHumidity.h"
	#include "SensorPressure.h"
	#include "SensorRain.h"
	#include "SensorWind.h"


	class WeatherStation
	{
	// Public Variables/Functions
	public:
	WeatherStation(int period_time);
	void init();
	int begin();
	int beginSensors();
	void clearValues();
	void getWeatherValues();
	void getWeatherAverage();
	void task();
	float getBatteryVoltage();


	//Private Variables/Functions
	private:
	SensorRTC rtc;
	WeatherRecord wr;
	WeatherComunication wc;
	SensorTemperature st;
	SensorHumidity sh;
	SensorPressure sp;
	SensorRain sr;
	SensorWind sw;

	unsigned long minutes;
	unsigned long time_before;
	unsigned long time_after;
	int period;

	//HardwareSerial* DefaultSerial;

	float * temperatures;
	float * humidities;
	float * pressures;
	float * voltages;

	float temperature;
	float humidity;
	float pressure;
	float batteryVoltage;

	float windDirection;
	float windGust;
	float windSpeed;
	float amountRain;

	};

	#endif

view raw Weather app run on Lora Network hosted with ❤ by GitHub

Mawuena Michel KODZO AYEDZI

	#
	# Copyright (C) 2010 OpenWrt.org
	#
	# This is free software, licensed under the GNU General Public License v2.
	# See /LICENSE for more information.
	#

	include $(TOPDIR)/rules.mk

	PKG_NAME:=batman-adv

	PKG_VERSION:=2018.1
	PKG_RELEASE:=2
	PKG_HASH:=b866b28dbbe5c9238abbdf5abbc30fc526dea56898ce4c1bd76d5c017843048b

	PKG_SOURCE:=$(PKG_NAME)-$(PKG_VERSION).tar.gz
	PKG_SOURCE_URL:=https://downloads.open-mesh.org/batman/releases/batman-adv-$(PKG_VERSION)
	PKG_LICENSE:=GPL-2.0

	include $(INCLUDE_DIR)/kernel.mk
	include $(INCLUDE_DIR)/package.mk

	define KernelPackage/batman-adv
	URL:=https://www.open-mesh.org/
	MAINTAINER:=Simon Wunderlich <sw@simonwunderlich.de>
	SUBMENU:=Network Support
	DEPENDS:=+KMOD_BATMAN_ADV_BLA:kmod-lib-crc16 +kmod-crypto-crc32c +kmod-lib-crc32c +kmod-cfg80211
	TITLE:=B.A.T.M.A.N. Adv
	FILES:=$(PKG_BUILD_DIR)/net/batman-adv/batman-adv.$(LINUX_KMOD_SUFFIX)
	AUTOLOAD:=$(call AutoLoad,50,cfg80211 batman-adv)
	endef

	define KernelPackage/batman-adv/description
	B.A.T.M.A.N. advanced is a kernel module which allows to
	build layer 2 mesh networks. This package builds
	version $(PKG_VERSION) of the kernel module.
	endef

	define KernelPackage/batman-adv/config
	source "$(SOURCE)/Config.in"
	endef

	define Package/kmod-batman-adv/conffiles
	/etc/config/batman-adv
	endef

	PKG_EXTRA_KCONFIG:= \
	CONFIG_BATMAN_ADV=m \
	CONFIG_BATMAN_ADV_DEBUG=$(if $(CONFIG_KMOD_BATMAN_ADV_DEBUG_LOG),y,n) \
	CONFIG_BATMAN_ADV_DEBUGFS=$(if $(CONFIG_KMOD_BATMAN_ADV_DEBUGFS),y,n) \
	CONFIG_BATMAN_ADV_BLA=$(if $(CONFIG_KMOD_BATMAN_ADV_BLA),y,n) \
	CONFIG_BATMAN_ADV_DAT=$(if $(CONFIG_KMOD_BATMAN_ADV_DAT),y,n) \
	CONFIG_BATMAN_ADV_MCAST=$(if $(CONFIG_KMOD_BATMAN_ADV_MCAST),y,n) \
	CONFIG_BATMAN_ADV_NC=$(if $(CONFIG_KMOD_BATMAN_ADV_NC),y,n) \
	CONFIG_BATMAN_ADV_BATMAN_V=$(if $(CONFIG_KMOD_BATMAN_ADV_BATMAN_V),y,n) \

	PKG_EXTRA_CFLAGS:= \
	$(patsubst CONFIG_%, -DCONFIG_%=1, $(patsubst %=m,%,$(filter %=m,$(PKG_EXTRA_KCONFIG)))) \
	$(patsubst CONFIG_%, -DCONFIG_%=1, $(patsubst %=y,%,$(filter %=y,$(PKG_EXTRA_KCONFIG)))) \

	NOSTDINC_FLAGS = \
	-I$(PKG_BUILD_DIR)/net/batman-adv \
	-I$(STAGING_DIR)/usr/include/mac80211-backport \
	-I$(STAGING_DIR)/usr/include/mac80211-backport/uapi \
	-I$(STAGING_DIR)/usr/include/mac80211 \
	-I$(STAGING_DIR)/usr/include/mac80211/uapi \
	-I$(PKG_BUILD_DIR)/include/ \
	-include backport/backport.h \
	-include $(PKG_BUILD_DIR)/compat-hacks.h

	COMPAT_SOURCES = \
	$(if $(CONFIG_KMOD_BATMAN_ADV_MCAST),../../compat-sources/net/core/skbuff.o,) \
	$(if $(CONFIG_KMOD_BATMAN_ADV_MCAST),../../compat-sources/net/ipv4/igmp.o,) \
	$(if $(CONFIG_KMOD_BATMAN_ADV_MCAST),../../compat-sources/net/ipv6/mcast_snoop.o,) \

	define Build/Compile
	+env "batman-adv-y=$(COMPAT_SOURCES)" \
	$(MAKE) $(PKG_JOBS) -C "$(LINUX_DIR)" \
	ARCH="$(LINUX_KARCH)" \
	CROSS_COMPILE="$(TARGET_CROSS)" \
	SUBDIRS="$(PKG_BUILD_DIR)/net/batman-adv" \
	$(PKG_EXTRA_KCONFIG) \
	EXTRA_CFLAGS="$(PKG_EXTRA_CFLAGS)" \
	NOSTDINC_FLAGS="$(NOSTDINC_FLAGS)" \
	modules
	endef

	define Build/Prepare
	$(call Build/Prepare/Default)
	$(CP) ./files/compat-hacks.h $(PKG_BUILD_DIR)/
	endef

	define Build/Clean
	rm -rf $(BUILD_DIR)/$(PKG_NAME)/
	endef

	define KernelPackage/batman-adv/install
	$(INSTALL_DIR) $(1)/etc/config $(1)/etc/hotplug.d/net $(1)/etc/hotplug.d/iface $(1)/lib/batman-adv $(1)/usr/sbin $(1)/lib/netifd/proto
	$(INSTALL_DATA) ./files/etc/config/batman-adv $(1)/etc/config
	$(INSTALL_DATA) ./files/lib/batman-adv/config.sh $(1)/lib/batman-adv
	$(INSTALL_BIN) ./files/etc/hotplug.d/net/99-batman-adv $(1)/etc/hotplug.d/net
	$(INSTALL_BIN) ./files/lib/netifd/proto/batadv.sh $(1)/lib/netifd/proto
	$(INSTALL_BIN) ./files/lib/netifd/proto/batadv_vlan.sh $(1)/lib/netifd/proto
	endef

	$(eval $(call KernelPackage,batman-adv))

view raw Makefile Batman-adv hosted with ❤ by GitHub

Mawuena Michel KODZO AYEDZI

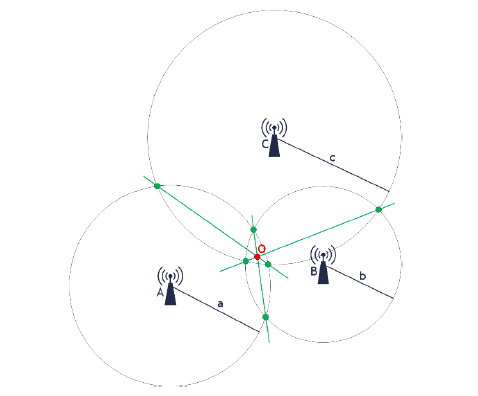

Trilaterisation of Nodes

Mawuena Michel KODZO AYEDZI

I'am working on Pitch desk, Yaovi!

Mawuena Michel KODZO AYEDZI

Ya! with solar panel... ;)

Antoine LAROSS

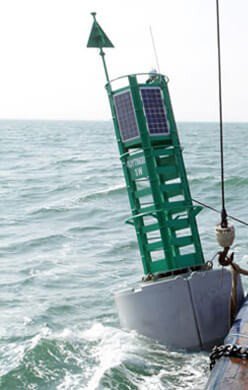

Sea autonomous beacon...

Mawuena Michel KODZO AYEDZI

Let's explore this point Michel!

Antoine LAROSS

Using Marine Beacons to create a mesh network running over wifi?

Mawuena Michel KODZO AYEDZI
